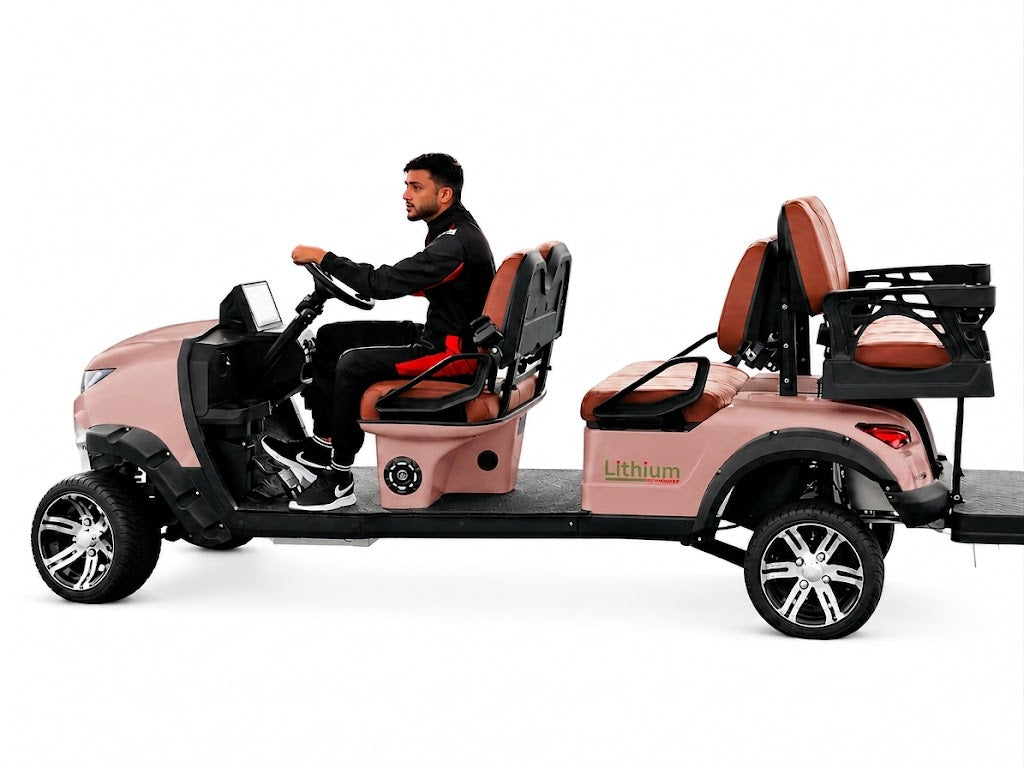

MXV RANGER 6 Indoor Edition – 6-Seater Electric No-Roof Golf Cart

MXV RANGER 6 Indoor Edition – 6-Seater Electric No-Roof Golf Cart offers configurable electric transport for UAE resorts, malls, facilities, estates and commercial fleets.

Built Without a Roof, On Purpose

The Ecocartz MXV Ranger 6 Indoor Edition is a roofless, windshieldless version of our 6-seat Ranger 6, purpose-built for indoor facility use — shopping malls, indoor theme parks, arenas, and stadiums. It seats 6 in the same compact 4+2 layout, with a shorter 2440mm wheelbase and tighter 5.5m turning radius than the Envoy 6 Indoor Edition.

Power and Range for a Full Day on the Floor

A 48V / 5KW motor and controller from USA Bigturn moves the Ranger 6 Indoor Edition at 25-45km/h, with a 48V/130AH battery delivering up to 80km of range per charge (8-10hr to fully recharge).

Stops and Turns With Confidence

Hydraulic front disc brakes and rear drums bring the cart to a stop in as little as 3 meters, with a tight 5.5m turning radius for its 6-seat capacity — ideal for busier indoor floor plans.

Full Specifications

• Model: SC-601MXV-NR (4+2 Street Tire, No Roof) | Passengers: 6
• Voltage: 48V | Motor: USA Bigturn 48V/5KW | Controller: USA Bigturn 48V/400A
• Battery: 48V/130AH, 8-10hr charge, up to 80km range
• Length x Width: 3650 x 1150mm (roofless — no overall height rating) | Wheelbase: 2440mm | Wheel tread (f/r): 960/980mm
• Max speed: 25-45km/h | Min braking distance: ≤3m | Min turning radius: ≤5.5m
• Max gradability (full load): 20% | Net weight: 460kg | Gross weight: 530kg
• Ground clearance: 150mm | Wheels: 12" | Tires: 215/35-12 (street, non-marking)
• Brakes: Hydraulic front disc / rear drum
• Configuration: No roof, no windshield — built for indoor facility use
